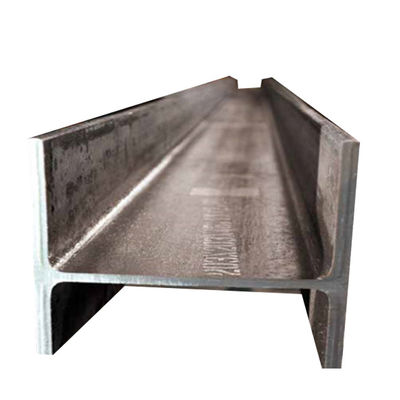

Q235/Q345/ST37-2/ST52/Q420/Q460/S235JR/S275JR/S355JR H Beam for Structure Building
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Zhongsheng |
| Model Number: | Q235b,Q355b, SS304,SS316 and etc |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Ton |
|---|---|
| Price: | $500.00/tons 1-9 tons |
|
Detail Information |
|||
| Grade: | Q235b,Q355b | Technique: | Hot Rolled |
|---|---|---|---|
| Thickness: | 5-34mm | Application: | Structure Building, Bridge Car Construction Etc. |
| Length: | 6-12m | Standard: | ASTM |
| Flange Width: | 50-400mm | Flange Thickness: | 8mm - 64mm |
| Web Width: | 100-630mm | Web Thickness: | 6.5-70mm |
| Tolerance: | ±3% | Processing Service: | Bending, Welding, Punching, Cutting |
| Alloy Or Not: | Non-Alloy | Invoicing: | By Theoretical Weight |
| Delivery Time: | 8-14 Days | Product Name: | H-Beam |
| Material: | Q235/Q345/ST37-2/ST52/Q420/Q460/S235JR/S275JR/S355JR | Technical: | Hot Rolled Molding |
| Surface: | Black | MOQ: | 5 Tons |
| Certificate: | ISO9001 | Packing: | Sea Worthy Packing Budle |
| Commodity: | Beam Steel Size Structural Iron | Type: | Hot Rolled Prime Steel |
| Delivery Term: | 20days | ||
Product Description
Beam I8530 Mild High Quality H Beam 300 300mm With Low Price H-shaped Steel hbeam Structural Steel H Beam
Product Description
H-beam is a new type of economic construction steel. The section shape of H-shaped steel is economical and reasonable, and the mechanical properties are good. The points on the section during rolling are more uniform and the internal stress is small.Compared with ordinary I-beam, it has the advantages of large section modulus, light weight and metal saving. The structure is reduced by 30-40%; and because the inside and outside of the leg are parallel, the leg ends are right angles, and assembled into components, which can save welding and riveting work up to 25%.

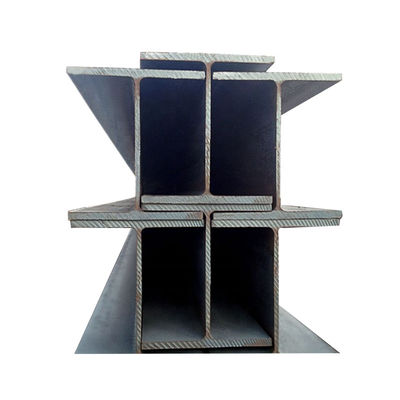

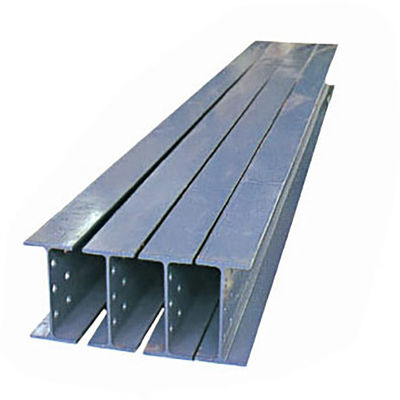

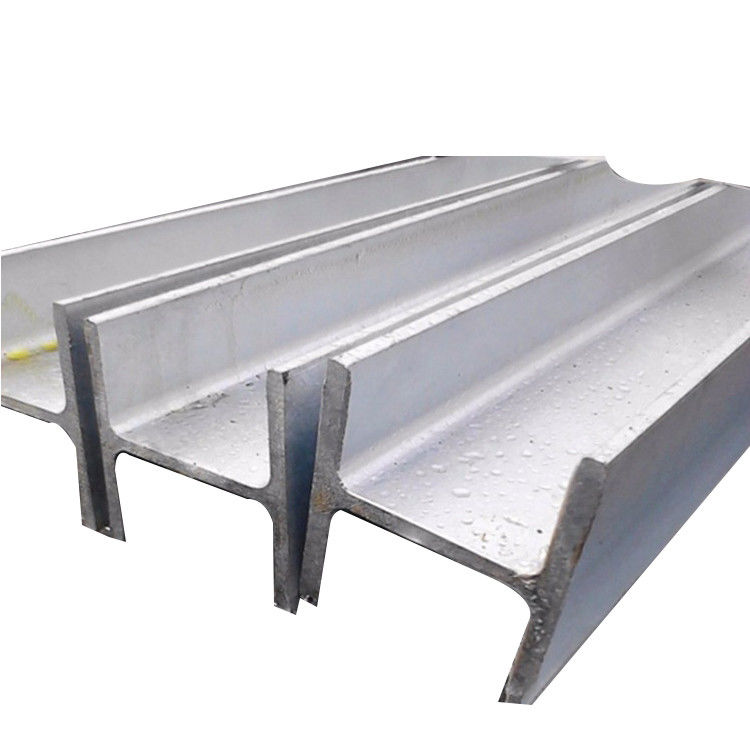

Product Display
Specification
|
Product Name
|
H-type Galvanized Steel H Beam Astm A36
|
|
|
|
|
High(H)
|
100mm-900mm
|
|
|
|
Flange width(B)
|
50mm-400mm
|
|
|
|
Web thickness(t1)
|
6mm-45mm
|
|
|
|
Flange thickness(t2)
|
8mm-64mm
|
|
|
|
Length
|
6-12m/pc or as your request.
|
|
|
Standard
|
GB706-2008; ASTM A36; ASTM A572; ASTM A992; AS/NZS3679.1; EN10025-2; JIS G3192, etc.
|
|
|
|
Material
|
SS400, Q235B,S235JR,Q345B, S355JR, A36 etc.
|
|
|
|
Technique
|
Hot rolled & Welded
|
|
|
|
|
1.Industrial structure of the steel structure bearingbracket.
|
|
|
|
|
2.Underground engineering steel pile and retaining structure.
|
|
|
|
|
3.Petrochemical and electric power and other industrial equipment structure
|
|
|
|
|
4.Large span steel bridge components
|
|
|
|
|
5.Ships, machinery manufacturing frame structure
|
|
|
|
|
6.The train, automobile, tractor beam bracket
|
|
|
|
|
7.Port of conveyor belt, high speed damper bracket
|
|
|
|

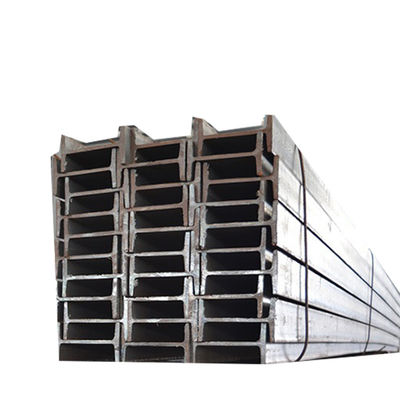

Package
|
Standard seaworthy packing or as required
|
|
|
|
Port of Shipment
|
Tianjin Port, China
|
|
|
|
H Beam Specification
|
|
|
|
|
|
|||||
|
Size(mm)
|
KG/Meter
|
Size(mm)
|
KG/Meter
|
Size(mm)
|
KG/Meter
|
|||||
|
100*50*5*7
|
9.54
|
250*255*14*14
|
82.2
|
400*400*13*21
|
172
|
|||||
|
100*100*6*8
|
17.2
|
294*200*8*12
|
57.3
|
400*408*21*21
|
197
|
|||||
|
125*60*6*8
|
13.3
|
300*150*6.5*9
|
37.3
|
414*405*18*28
|
233
|
|||||
|
125*125*6.5*9
|
23.8
|
294*302*12*12
|
85
|
440*300*11*18
|
124
|
|||||
|
148*100*6*9
|
21.4
|
300*300*10*15
|
94.5
|
446*199*7*11
|
66.7
|
|||||
|
150*75*5*7
|
14.3
|
300*305*15*15
|
106
|
450*200*9*14
|
76.5
|
|||||
|
150*150*7*10
|
31.9
|
338*351*13*13
|
106
|
482*300*11*15
|
115
|
|||||
|
175*90*5*8
|
18.2
|
340*250*9*14
|
79.7
|
488*300*11*18
|
129
|
|||||
|
175*175*7.5*11
|
40.3
|
344*354*16*16
|
131
|
496*199*9*14
|
79.5
|
|||||
|
194*150*6*9
|
31.2
|
346*174*6*9
|
41.8
|
500*200*10*16
|
89.6
|
|||||
|
198*99*4.5*7
|
18.5
|
350*175*7*11
|
50
|
582*300*12*17
|
137
|
|||||
|
200*100*5.5*8
|
21.7
|
344*348*10*16
|
115
|
588*300*12*20
|
151
|
|||||
|
200*200*8*12
|
50.5
|
350*350*12*19
|
137
|
596*199*10*15
|
95.1
|
|||||
|
200*204*12*12
|
72.28
|
388*402*15*15
|
141
|
600*200*11*17
|
106
|
|||||
|
244*175*7*11
|
44.1
|
390*300*10*16
|
107
|
700*300*13*24
|
185
|
|||||
|
244*252*11*11
|
64.4
|
394*398*11*18
|
147
|
792*300*14*22
|
191
|
|||||
|
248*124*5*8
|
25.8
|
400*150*8*13
|
55.8
|
800*300*14*26
|
210
|
|||||
|
250*125*6*9
|
29.7
|
396*199*7*11
|
56.7
|
900*300*16*28
|
243
|
|||||
|
250*250*9*14
|
72.4
|
400*200*8*13
|
66
|
|
|
|||||

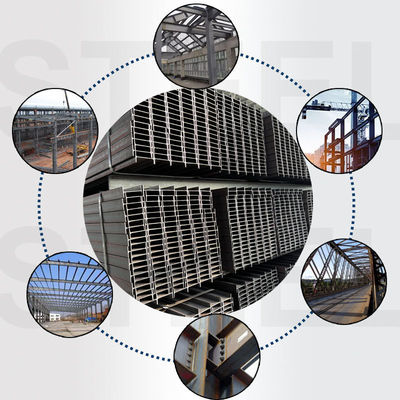

Application
Widely use in construction and other posting application. Size from 100*100mm to 900*300mm , weight per meter from 17.2Kg to 286Kg. The standard length is 6 meters and 12 meters. The most popular grades are Q235B (Equivalent with St37.2, S235JR,ASTM A36) and Q345B (Equivalent with St52.3, S355JR).Hot sell structural galvanized steel h beam low price Applications: Use in construction and other posting application or steel structure. Hot sell structural galvanized steel h beam low price Advantage:We have very good business channels with local mills. We always supply the quality steel products in very competitive price and make every process including produce, domestic transportation, inspection and shipment under our control.
Packing & Delivery
Company Profile
Shandong Zhongsheng Materials Co., Ltd. is a comprehensive, modern and high-quality enterprise integrating steel production, processing and sales. Located in the north near the port city: Jinan. Nearby Tianjin, Qingdao, Shanghai ports, low transportation cost, steel price concessions. Since its establishment, the company has developed rapidly. It has established long-term and stable cooperative relations with Shandong Iron and steel, Rizhao Iron and steel, Shanxi Taiyuan Iron and steel, Shanghai Baosteel, Xiwang special steel and other domestic steel mills.
Main products: carbon steel, stainless steel, galvanized series, PPGI/PPGL series, aluminum series, copper series, steel pipe, section steel, rebar, steel wire, flange cutting parts, etc. Which are widely used in automobile, oil, railway, bridge, construction, electric power, transportation, machinery, shipbuilding, light industry, home appliances, kitchen and other important fields.
Shandong Zhongsheng Materials Co., Ltd. has become the most potential steel supply company in Shandong province in a short period of time. The company is supported by a strong capital chain and can accept LC, copy of bill of lading and other payment methods, which have been widely recognized by foreign customers. Our products not only sell well in the domestic market, but also sell well in the United States, Europe, Pakistan, South Korea, Japan, South Africa, Vietnam, Myanmar, Ethiopia, Australia, Bahrain, Singapore, Brazil, Russia and other countries and regions, and are highly praised by foreign customers. The number of export countries is growing, and the sales volume is gradually increasing.
Shandong Zhongsheng Materials Co., Ltd. has become the most potential steel supply company in Shandong province in a short period of time. The company is supported by a strong capital chain and can accept LC, copy of bill of lading and other payment methods, which have been widely recognized by foreign customers. Our products not only sell well in the domestic market, but also sell well in the United States, Europe, Pakistan, South Korea, Japan, South Africa, Vietnam, Myanmar, Ethiopia, Australia, Bahrain, Singapore, Brazil, Russia and other countries and regions, and are highly praised by foreign customers. The number of export countries is growing, and the sales volume is gradually increasing.
Looking forward to doing business and making friends with clients all around the world!
FAQ
Q: Are you trading company or manufacturer?
A: We are professional manufacturer with rich experience, and our company also is a very professional a trade company for steel products.We can also provide a wide range of steel products.
Q: Will you delivery the goods on time?
A: Yes,we promise to provide best quality products and delivery on time.Honesty is our company's tenet.
Q: Do you provide samples ? Is it free or extra?
A: The sample could can provide for customer with free,but the courier freight will be covered by customer account.
Q: Do you accept the third party inspection?
A: Yes absolutely we accept.
Q: How could you guarantee your products?
A: Each piece of products is manufactured by certified workshops, inspected by Linxu piece by piece according to national QA/QC standard. We also could issue the warranty to customer to guarantee the quality.
Q: How do we trust your company?
A: We specialise in steel business for years, headquarter locates in Jinan, Shandong province, you are welcome to investigate in any ways, by all means, you could place an order in with trade assurance which could secure your payment.
Q: How can I get your quotation as soon as possible?
A: The email and fax will be checked within 24 hours,meanwhile,the Skype,Wechat and WhatsApp will be online in 24 hours.Please send us your requirement and order information,specification(Steel grade,size,quantity,destination port),we will work out a best price soon.
A: We are professional manufacturer with rich experience, and our company also is a very professional a trade company for steel products.We can also provide a wide range of steel products.
Q: Will you delivery the goods on time?
A: Yes,we promise to provide best quality products and delivery on time.Honesty is our company's tenet.
Q: Do you provide samples ? Is it free or extra?
A: The sample could can provide for customer with free,but the courier freight will be covered by customer account.
Q: Do you accept the third party inspection?
A: Yes absolutely we accept.
Q: How could you guarantee your products?
A: Each piece of products is manufactured by certified workshops, inspected by Linxu piece by piece according to national QA/QC standard. We also could issue the warranty to customer to guarantee the quality.
Q: How do we trust your company?
A: We specialise in steel business for years, headquarter locates in Jinan, Shandong province, you are welcome to investigate in any ways, by all means, you could place an order in with trade assurance which could secure your payment.
Q: How can I get your quotation as soon as possible?
A: The email and fax will be checked within 24 hours,meanwhile,the Skype,Wechat and WhatsApp will be online in 24 hours.Please send us your requirement and order information,specification(Steel grade,size,quantity,destination port),we will work out a best price soon.
